Modularized Educational Spectroscopic System

FE-SPC
Model
FE-SPC-edu
Category
FE-SPC

Summary

This system enables chemical analysis through spectral measurement.

The system Consists of a main unit, optical component modules, various teaching demonstration accessories, and computer software and hardware.

Details

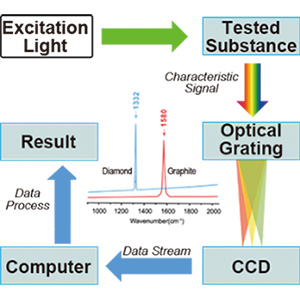

——  Diagram  ——

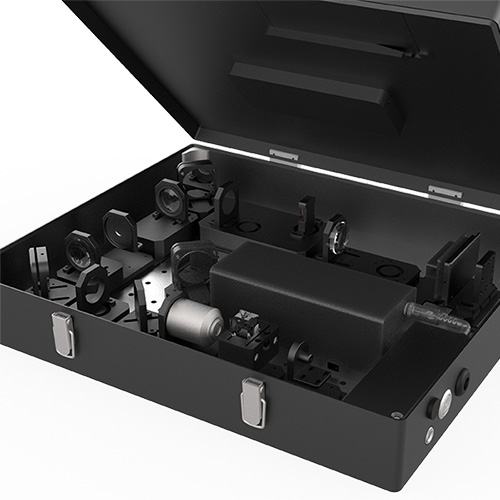

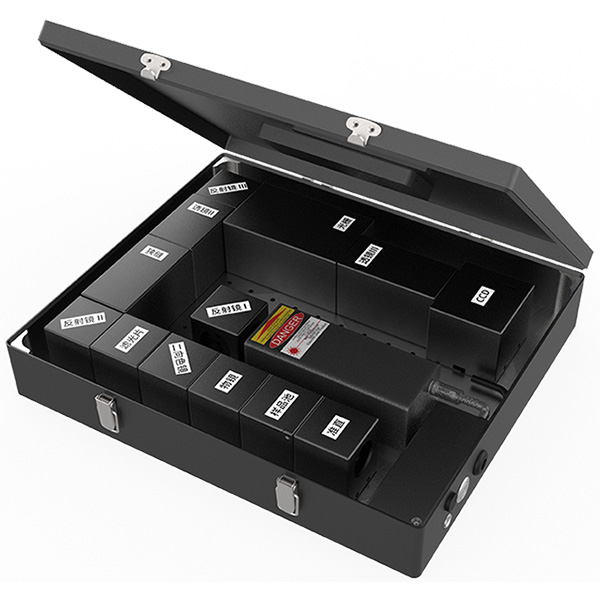

——  Modularized Structure  ——

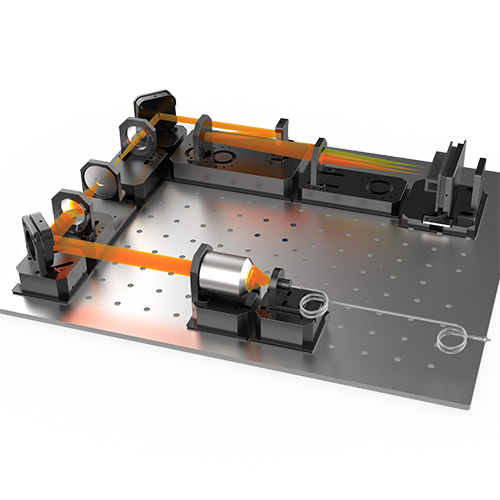

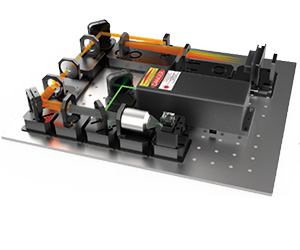

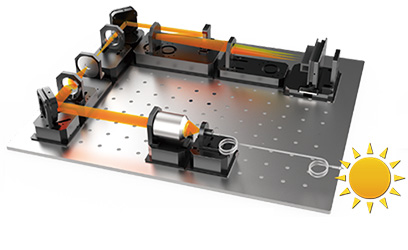

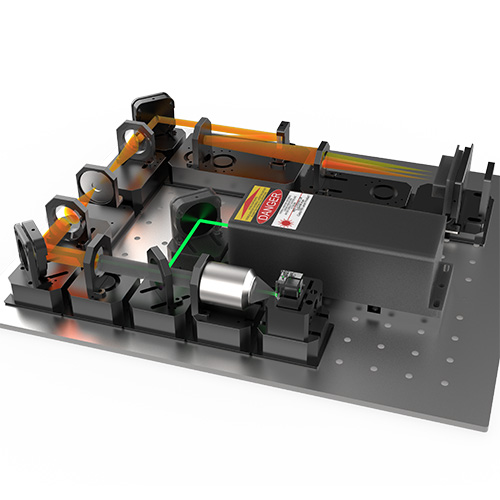

Optical layout for Raman Spectroscopy Optical layout for Solar Absorption Spectroscopy Optical layout for Atomic Emission Spectroscopy

——  Spectrum Charts ——

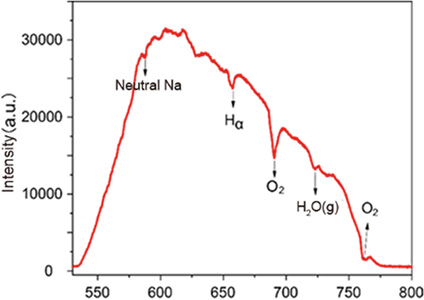

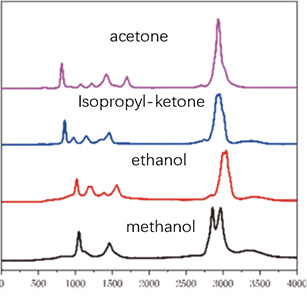

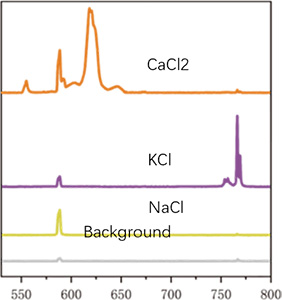

Raman spectrum Solar spectrum Atomic emission spectrum

——  Specifications  ——

Laser wavelength 532 nm
Laser power 20 mW
Emission spectrum wavelength range 520 ～ 770 nm
Raman spectral measurement range 1200 ～ 400 cm-1
Spectral resolution 1 nm 或 20 cm-1
Linear CCD total pixels (H x V) 2048 × 1
Primary accessories Alcohol blast burner, Optical fiber, Solid / Liquid sample cell, Protective goggles, etc.
Main unit dimension 340 mm × 270 mm × 61 mm
Weight ～ 10 kg
Working voltage 220 V
Maximum power 10 W
Working temperature 10 ～ 35 ℃
Working relative humidity ＜ 80 %
Warranty period 1 Year
